Quick Details

  • Condition: New
  • Machine Type: Insulating Glass Production Line
  • Production Capacity: 100%
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TRUMP
  • Model Number: JYN1800
  • Voltage: 380v/50hz
  • Power(W): 24.0kw
  • Dimension(L*W*H): 19200*2400*2900mm
  • Weight: 5500kgs
  • Certification: CE
  • Warranty: 2 years
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Products: Best Fabrication Thermal Double Glass Make Machinery
  • power: 380v50hz
  • cleanout speed: 2-15m/min
  • working speed: 15-45m/min
  • Max glass thickness: 50mm
  • origin: china jinan
  • Skype: ella wang
  • trade manager: cn1511825956
  • warranty: 2 years
  • training: free tranning

Packaging & Delivery

Packaging Details 1.Simple stretch film packaging;
2.Professional export wooden packing;
for building insulating /double glass making machine
Delivery Time within 5 working days

Best Fabrication Thermal Double Glass Make Machinery

  insulating glass machine Vertical Automatic Insulating Glass Machine Production Line   glass machine production lineouble glazing machineInsulating double glass machine/ double glazing glass machine

Product Description





Application and Features  >>

PLC control system with whole process, touch-sensitive screen and man-machine interface.

Realize the surface layer of coated glass and LOW-E glass automatically.

The cleaning machine and washer system adopt stainless steel and anticorrosion material with all parts and it has features of super durability.

It adapts to clean 3 to 12 thickness glass, transmission setup of cleaning and drying part is designed automatically.






Equipment  configuration  >>

Equipment

 Model

Parameter

JYN1800

JYN2200

JYN2500A

Power supply

380V 50Hz

380V 50Hz

380V 50Hz

Total power



24.0KW

26.KW

28.0KW

Process glass

size

Max

2500*1800

3000*2200

3000*2500

Min

280*450

280*450

280*450

Original glass

 thickness

3~25

3~25

3~25

Working speed

Washing speed

3~9m/min

3~9m/min

3~9m/min

Conveying speed

after washing

15~45m/min

15~45m/min

15~45m/min

Outline dimension

L×W×H (mm)

19200*2400

*2900MM

19600*2500

*3380MM

19600*2500

*3680MM

Net weight

5500KG

6500KG

7300kg

Procesing details >>

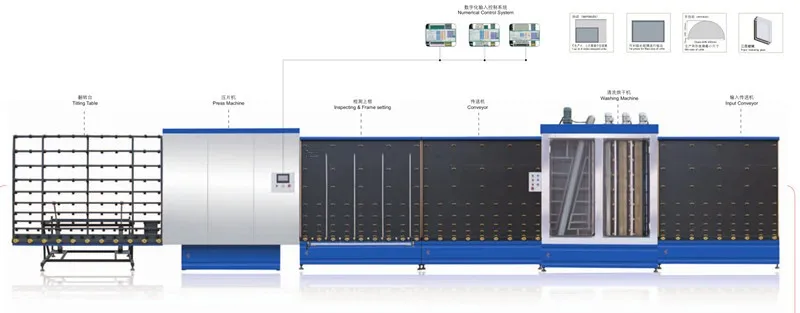

The first part: Input Unit

  • Conveying/transporting glass sheets to washing and drying unit.
  • Automatic drives to pushes the glass into washing and drying unit automatically
  • Realize the surface layer of coated glass and LOW-E glass with a sensor

Washing and Drying Unit

  • stainless steel and anticorrosion material with all parts;
  • Be able to wash Low-E glass;
  • Three pairs of brushes, entire rubber rollers;
  • Drying part guaranteed by strong blower with hot air;
  • Hot water to achieve better cleaness of glass;
  • Washing - drying cabinet and blower with noise reducing devices
  • The speed of transport can be adjusted.

Cleaness Inspecting Unit

  • Also outletting unit after glass washing and drying;
  • With lighting tubes on this unit;
  • Inspecting whether the glass is clean or not;
  • The speed of transport can be adjusted.

Aluminum Spacer Assembly Unit

  • used to load aluminum spacer bar;
  • The first glass goes into the panes pressing unit first;
  • Loading the spacer bar on the second glass;
  • Locating blocks make the placement of spacer easier.

Panel Pressing Unit

  • Press the two sheets of glass with spacer together;
  • Can make step glass;
  • Inputting, outputting, panel pressing, all automatically;
  • Parameters can be changed easily through the touch screen;
  • Press presssure can be adjusted.
  • Capable of doing double and triple glazed units

Tilting Table

  • Glass sheet can be tilted to horizontal position, easy for transporting or unloading.


Machine Processing
Machine processing  >>



TRUMP INTERNATIONAL  selected each part  carefully , we are strive to quality first when machine  production and test each machine before delivery.  So we will provide the best machine for you.


Qualit control
Quanlity control>>



TRUMP  engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.

After machine production finished, the products will be tested in professional ways make sure its performance.

Packaging & Shipping
Packing and Shipping>>



TRUMP INTERNATIONAL produce high quality machines, also pay attention to package.

The machines will be packed with steel pallet and standard export wooden case,

to make sure customer will receive the machines they ordered Intact.



Our Services
Our serivces >>



A,18month warranty

B,1%-2% spare parts

C, OEM&ODM are welcom

D,Tried orders are available

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

TRUMP INTERNATIONAL  always looking for long term cooperaion, not one time deal.

Company Information
Company information >>



Jinan Trump International CO.,LTD is a manufacturer and trading company which have rich experiences in machine making and export.Our main products is PVC/UPVC /aluminum Window and door making machine  /Insulating glass processing machine /Curtain Wall Machine Our company have passed CE certification and so on...

Workshop

Certification

We have our own research and development personnel and team, innovation of science and technology. Also has a good technical personnel, there are a lot of experience in this industry.

Cooperative  Partners

 On the exhibition



FAQ
FAQ>>



 1. Question:Are you manufacture?

Answer:

Yes,we are the professional manufacture which have more than 5 workshops.

 2.Question: About this Machine,What’s the guarantee ?

Answer:

1).Our guarantee for 16 months. 2).24 hour’s technical support by email or calling 3).English manual and video tutorial 4).We will provide the consumable parts at an agency price 5).24 hours on line service each day, free technical support.

3.Question:if our price is higher than another company or factories ?

Answer: please check, what is is the different of the machine of  parts ,service and guarantee,especially the machine inner electric parts,

sometimes,if the machine have breakdown, the most reason is the machine inner electric parts problem,

but we use the famous and reliable parts for the machines inside.

Kindly note:

These five basic machines just can be enough for a 20 foot container,if you want to know the freight charge, you can tell me your destination port name, then I can tell you the freight charge.
