Quick Details

  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TRUMP
  • Model Number: LGW-CNC
  • Machine Type: Roller-Bending Machine
  • Raw Material: Sheet / Plate Rolling
  • Material / Metal Processed: Aluminum
  • Power: Cnc
  • Automation: Automatic
  • Extra Services: Bending
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: China manufacturer CNC Arched bending machine for aluminum profile
  • Color: Optional
  • Usage: Metal material bending
  • Input power: 4kw
  • Voltage: 380V
  • Min. diameter of bending: 150mm
  • Max. size of profile: 120*150mm
  • Max torque of X axis: 2500N.M
  • overall diamension: 1200*1100*1400mm
  • Weight: 900kg

Packaging & Delivery

Packaging Details Standard export packing for China manufacturer CNC Arched bending machine for aluminum profile
Delivery Time Shipped in 15 days after payment

China manufacturer CNC Arched bending machine for aluminum profile

Product Description



1. The machine is mainly used for bending for metal material such as iron, copper and aluminum and special shaped material. It's ideal equipment of curved process for furniture manufactures, wrought iron engineering manufacturers, aluminum alloy doors and windows manufaturers, aluminum alloy doors and windows manufacturers, decorative steel structure enterprise.

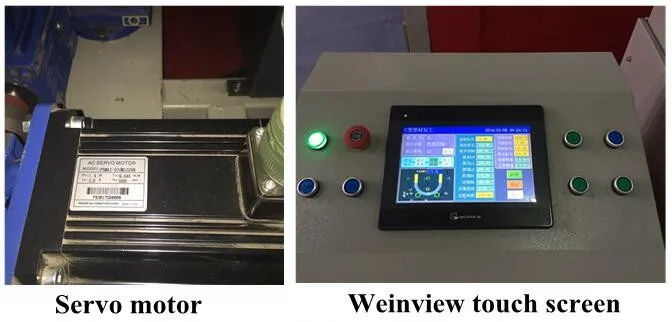

2. The machine adopts CNC controller, which make the machine features easy handling and high precision.
3. Using CNC software, makes the bending operation very simple.
4. Can bend many shapes such as C shape, U shape, the whole circle oval, combination of multiple radius-shaped, etc.
5. Two servo motor or hydraulic & Servo motor for your choice.

5. Capable of detecting material rebound data, eliminate rebound.



ModelLGW-CNC
Input power4KW
Voltage                            380V 50Hz
Min. diameter of bending150mm
Max. Size of profile120*150mm
Axial spacing320-600mm
Y axis Hydraulic thrust13T (max:20T)
Spindle diameter50mm
Positioning precision0.02mm / <0.01mm
Max. torque of X axis2500N.W
Three shaft speed1-15r/min
Overall dimension1200*1100*1400mm
Weight900kg

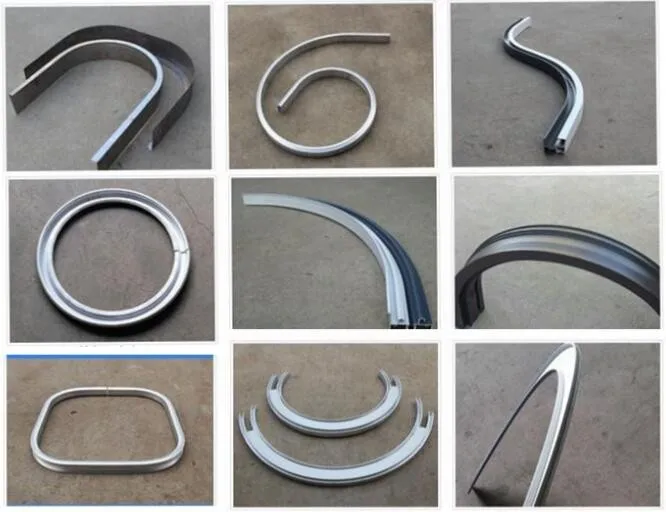

BENDING EFFECT
Packaging & Shipping

Our Services

Before payment



Free contact for the most suitable machine

Free professional design for each customer especially.



After sale service



24 hours technical support by phone, email or skype (email or skype) .

1years warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.



Payment



♦ L/C, 30% deposit by T/T,70% spare payment L/C.

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal.

Company Information

Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.



Customer show

FAQ

1. When can we arrange shippment?

We usually arrange shippment  within 15 days after getting deopsit,

but customized machines should be more than 25 days.

2.What you can do if my machines have problems?

1) We can send you free components to you if your machines are in guarantee time.

2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.

4.If I make Aluminum window and door, how many basic machines do i need?

1).double head cutting saw

2).Lock hole copy milling machine

3).End milling machine

4).Automatic Corner connector automatic cutting saw

5).Single head Corner combining machine

Kindly note:

These five basic machines just can be enough for a 20 foot container,if you want to know the freight charge, you can tell me your destination port name, then I can tell you the freight charge.
